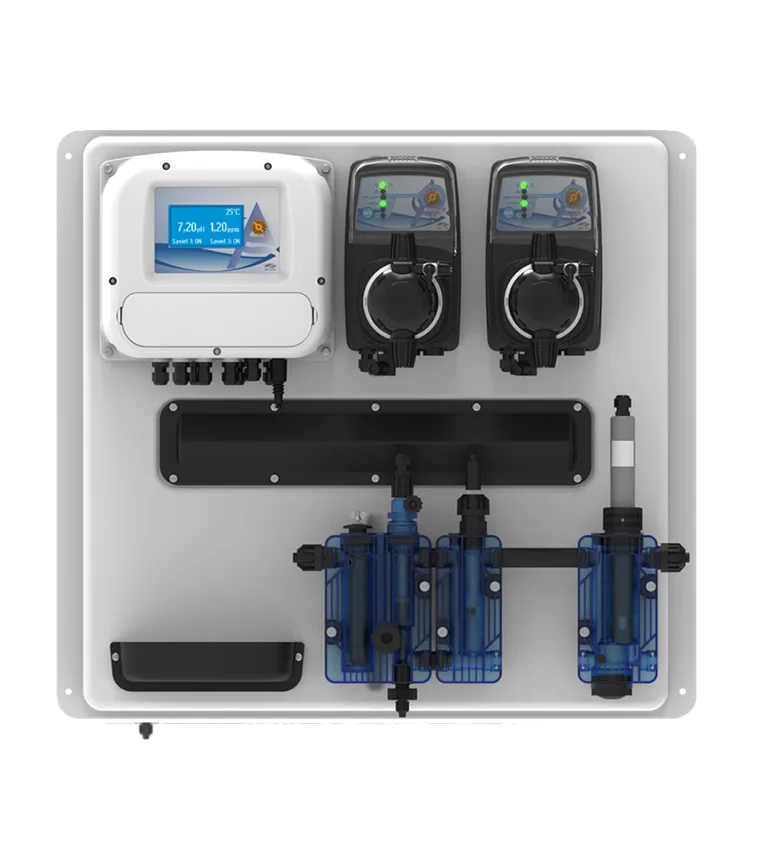

A-POOL TOP +
Description
Technical features
Control panel ON-OFF / proportional regulation of pH and Chlorine from 0-2 and 0-5 ppm for public and private pools composed by:
N.1 1 AE START+ “PH-RX or PH-CL(J)” with 2 measure
N.2 HC151+ PIMA (M70) adjustable on 3 models
Modular probe holder for pH probes + RX electrode (only for RX series)
Chlorine cell (Pt-Cu) complete with PH Electrode (only for CL series)
Amperometric membrane probe for free chlorine with PH Electrode output signal in mV (only for CLJ series)
Complete with flow sensor and flow regulator
Temperature probe
pH Buffer solutions
2 level probes
RS485 output
Power supply: 110-240V 50/60Hz
Standards:
No. 2004/108/CE EMC directive
No. 2006/95/CE ‘DBT low voltage directive’
No. 2011/65/UE, 2002/96/CE ‘RoHS and WEEE directives’
Models
CODE | DESCRIPTION | |
|---|---|---|
ADPT+055 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-RX FOR OUTDOOR POOLS 150M3 | |
ADPT+050 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-RX FOR OUTDOOR POOLS 400M3 | |
ADPT+060 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-RX FOR OUTDOOR POOLS 800M3 | |
ADPT+105 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CL FOR OUTDOOR POOLS 150M3 | |
ADPT+100 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CL FOR OUTDOOR POOLS 400M3 | |
ADPT+110 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CL FOR OUTDOOR POOLS 800M3 | |
ADPT+205 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CLJ FOR OUTDOOR POOLS 150M3 | |
ADPT+200 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CLJ FOR OUTDOOR POOLS 400M3 | |
ADPT+210 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CLJ FOR OUTDOOR POOLS 800M3 | |
ADPT+070 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-RX WITHOUT DOSING PUMPS "ADPTC110PR06000" | |
ADPT+120 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CL WITHOUT DOSING PUMPS "ADPTC110PC06000 | |
ADPT+220 | COMPLETE AUTOMATIC DOSING PANEL SYSTEM A-POOL TOP+ PH-CLJ WITHOUT DOSING PUMPS "ADPTC120AJ06000" | |
KITPDE503 | INSTALLATION KIT A-POOL TOP + MOD. A | |
KITPDE504 | INSTALLATION KIT A-POOL TOP + MOD. B | |
KITPDE515 | INSTALLATION KIT A-POOL TOP + MOD. PH- | |
ADLASM30B0 | COMPLETE SUCTION LANCE WITH C-PROBE LEV.-S/BNC T-A (2/300L-H940) GL-VT 4X6 | |
ADLASM30B0 | COMPLETE SUCTION LANCE WITH C-PROBE LEV.-S/BNC T-A (2/300L-H940) GL-VT 4X6 | |
ADTANK010 | A-TANK 1 100 LITRES | |
ADTANK020 | A-TANK 2 200 LITRES | |
ADTANK030 | A-TANK 3 300 LITRES | |
ADSP7000790 | FLOW METER KIT | |
ADSP7000791 | FLOW METER KIT + PRESSURE REDUCER | |
